Math optical character recognition, or math OCR, is a specialised space of OCR, however extremely useful in educational fields the place enter or transcription of math equations is tedious and time consuming. Math OCR options do exist, however many are stroke detection based mostly, inaccessible or paid closed-source. With Roboflow, mathematical equation recognition will be achieved by anybody..
On this information, we are going to cowl the way to construct mathematical equation recognition capabilities with Roboflow.
The Drawback
Though math OCR options do exist, not like conventional textual content recognition, they’re removed from plentiful, accessible and open supply. Math OCR specifically generally is a tough drawback to strategy.
Take into account an equation like the next:
Buildings like fractions, roots and exponents confuse most current OCR options and math equations include many distinctive characters, formattings and syntax that may be tough to be taught itself and much more tough to acknowledge.
Why Laptop Imaginative and prescient
Many current conventional OCR options already use types of laptop imaginative and prescient. Conventional OCR options are usually not all made the identical, however most observe an identical course of.
Object detection is used to isolate blocks of textual content, then particular person strains of textual content inside blocks, then phrases inside strains of textual content, then letters inside phrases.
Then, picture classification is used to establish every letter. The letters, phrases, strains and blocks of textual content are reassembled into human readable textual content.
How one can Use Laptop Imaginative and prescient for Math OCR
For recognizing math equations, we are able to use comparable ideas to interrupt down math equations into separate components. As a substitute of blocks, strains and phrases of textual content, we are able to use object detection to acknowledge math-specific syntax and buildings like fractions, roots and superscripts.
Identical to many design processes, this one was filled with trial and error.
Our preliminary try to design a math recognition system labeled all of the characters, buildings, and many others as separate lessons.
This strategy resulted in a extreme imbalance of lessons. The character of math syntax meant lessons comparable to zeros, “x”, “y” and different widespread characters would outnumber lessons comparable to fractions or much less widespread lessons, in essentially the most excessive occasion: 60,000 to 1. Though it’s naturally occurring, when coaching machine studying fashions, having an imbalance will make it tough for the mannequin to search out the much less occurring class, because it has much less examples to be taught from.
Taking a look at Roboflow’s Well being Test, it was clear that the bottom occuring lessons have been the characters. With the intention to make a extra balanced dataset, taking inspiration from conventional OCR design, we devised a two step design for recognition.
Isolation Step
On this step, an object detection mannequin would isolate and establish all characters collectively below one class named `character` and separate, uniquely identifiable buildings with their respective names.
To perform this, since all the information was already created, we organized all of the characters below one class by utilizing the remap pre-processing step on Roboflow. This resulted in remapping 103 lessons to 1.
Remapped 103 character lessons into one utilizing the Modify Lessons preprocessing software
Classification Step
On this step, a picture classification mannequin would establish every character and return the related image, akin to conventional OCR.
Creating the Dataset
A top quality, giant dataset is useful for any undertaking, however particularly necessary and intensely tough for this undertaking.
The primary try for a dataset entailed taking screenshots from a math textbook and utilizing Roboflow Annotate to manually label photos. Regardless of finest efforts, this resulted in labeling 50 photographs throughout the span of per week, which yielded disappointing outcomes of a 27.6% mAP.
Artificial Information and Annotation Technology
Primarily based on learnings from the primary try, the second strategy was way more profitable. It centered across the purpose to provide as a lot information as potential, as precisely as potential, as shortly as potential.
Producing the Equations
The preliminary try revealed some biases and inefficiencies in producing not solely the pictures and annotations, but additionally the underlying equations themselves. Taking screenshots from a math textbook did not produce sufficient amount, high quality nor number of equations that might be useful for coaching a math OCR mannequin.
To get a bigger amount and wider number of equations, we seemed to Mathway, a web-based math drawback solver frequented by college students. Their web site incorporates a “In style Issues” part with hundreds of equations which are submitted by college students the world over to be solved by Mathway.
Creating the pictures
One other drawback that wanted to be solved was the era of the pictures. Up so far, the information was screenshots of textbooks or manually typing out equations in rendering web sites. However, for hundreds of equations, a streamlined course of needed to be designed. The brand new workflow used parts of a math equation rendering engine for the net, used to show math equations on an entire host of math/training associated web sites, known as MathQuill.
Creating the annotations
Not solely did MathQuill, utilizing html2canvas, a JavaScript bundle that creates photographs of HTML parts, create top quality coaching photographs, it additionally allowed the method of mechanically producing annotations. This was potential as a consequence of MathQuill’s HTML format making it considerably simple to see all of the characters and buildings utilized in a math equation.
Utilizing JavaScript, it additionally grew to become potential to get the precise location of every factor within the equation. This was tried first utilizing the `getBoundingClientRect()` operate, however as a consequence of bounding field discrepancies, shifted to creating each different factor invisible and mapping out distinction to get bounding field places.
The method of my code discovering the bounding field of every character/construction by altering the opposite parts’ visibility
As soon as the bounding field location was identified, it then grew to become potential to assemble a COCO JSON annotation file that to then add by means of Roboflow’s annotation add API.
Including annotations to the undertaking by way of the add API
Augmentations
Along with augmentations made on the dataset era aspect, which included utilization of various fonts, font sizes and background photographs, augmentations comparable to crop, rotation, shear, hue, saturation, brightness, publicity, blur and noise have been added.
Energetic Studying
After an preliminary, decrease performing mannequin was educated, roboflow.js was used to create an lively studying surroundings.
Utilizing a identified equation, the present code generated an equation picture. As soon as the equation picture was generated, it was inferred on by the mannequin, which might predict what the equation was. If the expected equation was incorrect, it could submit the picture and the annotations again to my undertaking with a view to assist prepare the mannequin additional.
What resulted was a cyclical lively studying course of, the place low-performing photographs could be mechanically added to the undertaking dataset to be used in bettering the mannequin’s efficiency in future educated variations.
End result
The consequence was a 100,000 picture dataset with most, if not all, good annotations utilizing solely two various and augmented photographs for every distinctive equation.
The coaching outcomes additionally mirrored the advance, particularly over the previous 27.6%, with the brand new dataset reaching 99.4% mAP, 98.1% precision and 98.5% recall.
Coaching outcomes

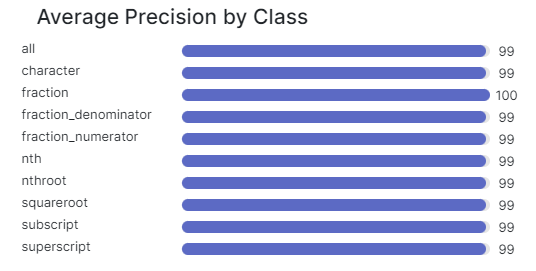

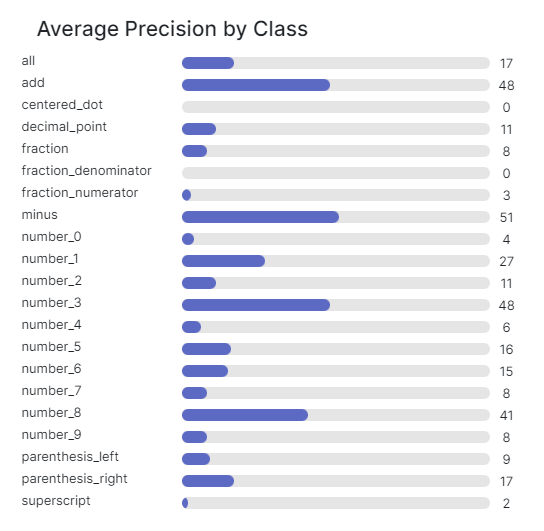

Check dataset outcomes from my first tried strategy (proper) and my second try (left)
Conclusion
All through the method of making math OCR functionality, utilizing Roboflow’s instruments to create laptop imaginative and prescient datasets and fashions allowed this undertaking to happen, utilizing most components of Roboflow’s pipeline:
- Immediately importing coaching photographs as they’re made
- Managing large quantities of knowledge
- Having centralized entry to annotations and pictures
- Monitoring dataset well being by means of Well being Test
- Coaching whole fashions with a single click on
- Deploying fashions shortly utilizing deployment strategies comparable to roboflow.js
- Rapidly iterating by means of failures with lively studying
Utilizing laptop imaginative and prescient, navigating and digitizing the complicated syntax of math equations turns into a a lot simpler course of.
